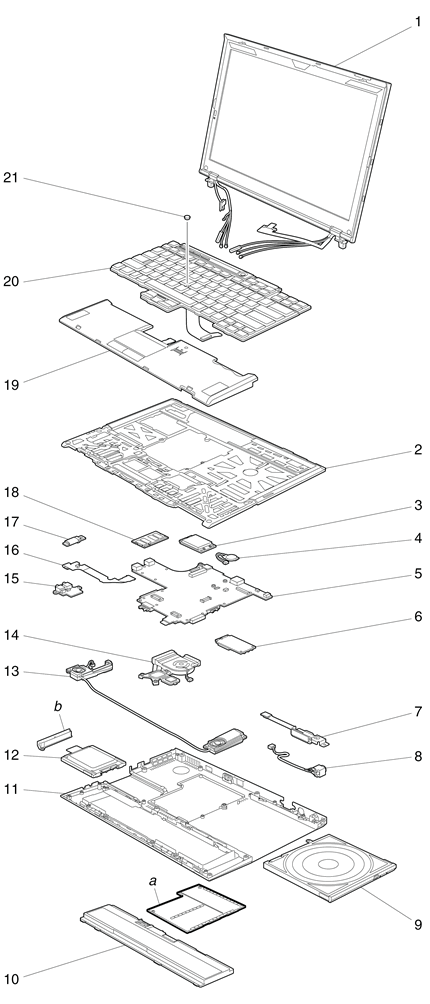

System service parts - ThinkPad X301
Each Field Replaceable Unit (FRU) applies to all types and models,
unless specific types or model numbers are listed with the FRU.
- FRUs that have a 1 or 2 in the CRU column are Customer Replaceable
Units (CRUs).
* identifies parts that are fairly simple to replace, requiring
few or no tools.
** identifies parts that are slightly more difficult to replace.
N identifies parts that are not to be replaced by the customer.
- RoHS compliance:
Parts identified by an R in the RoHS ID column are compliant.
Parts identified by an N in the RoHS ID column are not compliant.
+------------------------------------------------------------------------+
|Item|Description |Service|RoHS |CRU |
| | |part |ID |ID |
| | |number | | |
| | |(FRU) | | |
|----+-------------------------------------------------------------------|
|a-b |See Miscellaneous parts. |
|----+-------------------------------------------------------------------|
|1 |LCD unit |
| |-------------------------------------------------------------------|
| |See 13.3 inch WXGA+ (1440x900) LCD service parts. |
|----+-------------------------------------------------------------------|
|2 |Keyboard bezel assembly |
| |-------------------------------------------------------------------|
| |All models |45N3056|R |N |
|----+-------------------------------------------------------------------|
|3 |Qualcomm? UNDP1 - Wireless WAN card |
| |-------------------------------------------------------------------|
| | * 2774-CTO, 23x |42T0961|R |** |
| | * 2776-CTO | | | |
| | * 2777-CTO | | | |
| | * 2778-CTO | | | |
| | * 2779-CTO | | | |
| | * 4057-CTO | | | |
| | * 4182-CTO | | | |
| |-------------------------------------------------------------------|
| |Ericsson F3507g USA - Wireless WAN card |
| |-------------------------------------------------------------------|
| | * 2774-CTO |43Y6477|R |** |
| | * 2776-CTO, LAx, P5x, P6x, TLx, TMx | | | |
| | * 2777-CTO | | | |
| | * 2778-CTO | | | |
| | * 2779-CTO | | | |
| | * 4057-CTO | | | |
| | * 4182-CTO | | | |
| |-------------------------------------------------------------------|
| |Ericsson F3507g Other - Wireless WAN card |
| |-------------------------------------------------------------------|
| | * 2774-CTO, 1Tx, 1Ux, 1Vx, 26x, L7x, L8x, L9x,|43Y6479|R |** |
| | LAx,LBx, LEx, LFx, PDx, PEx, PFx, PGx | | | |
| | * 2776-CTO, LCx, LDx, TEx, TFx | | | |
| | * 2777-CTO | | | |
| | * 2778-CTO | | | |
| | * 2779-CTO | | | |
| | * 4057-CTO | | | |
| | * 4182-CTO | | | |
| |-------------------------------------------------------------------|
| |WWAN card with GPS (KDDI) |
| |-------------------------------------------------------------------|
| | * 2774-CTO, 25x, P3x, P6x |43Y6476|R |** |
| | * 2776-CTO | | | |
| | * 2777-CTO, P3x, P6x, TBx | | | |
| | * 2778-CTO | | | |
| | * 2779-CTO | | | |
| | * 4057-CTO | | | |
| | * 4182-CTO, LBx, P3x, P6x | | | |
|----+-------------------------------------------------------------------|
|4 |Backup battery |
| |-------------------------------------------------------------------|
| |All models |42T4524|R |** |
|----+-------------------------------------------------------------------|
|5 |System board assembly with 1.4 GHz CPU, non-AMT, TPM |
| |-------------------------------------------------------------------|
| | * 2774-CTO |42W8039|R |N |
| | * 2776-CTO, L1x, L2x, L3x, L4x, L5x, L6x, L7x,| | | |
| | L8x,L9x, LAx, LBx, LCx, LDx, LEx, LFx, T1x, | | | |
| | T2x, T3x,T4x, T5x, T6x, T7x, T8x, T9x, TAx, | | | |
| | TCx, TDx, TEx,TFx, TGx, THx, TJx, TKx, TLx, | | | |
| | TMx, TRx, TSx, P1x,P2x, P3x, P4x, P5x, P6x, | | | |
| | P7x, P8x | | | |
| | * 2777-CTO, L1x, L2x, T1x, T3x, T4x, T5x, T6x,| | | |
| | T7x,T8x, T9x, TAx, TBx, TCx, TDx, TEx, THx, | | | |
| | TJx, TKx,TLx, TMx, TNx, TPx, TRx, P1x, P2x, | | | |
| | P3x, P4x, P5x,P6x, P7x | | | |
| | * 2778-CTO | | | |
| | * 2779-CTO | | | |
| | * 4057-CTO | | | |
| | * 4182-CTO | | | |
| |-------------------------------------------------------------------|
| |System board assembly with 1.4 GHz CPU, non-AMT, non-TPM |
| |-------------------------------------------------------------------|
| | * 2774-CTO |42W8114|R |N |
| | * 2776-CTO, P9x | | | |
| | * 2777-CTO | | | |
| | * 2778-CTO | | | |
| | * 2779-CTO | | | |
| | * 4057-CTO | | | |
| | * 4182-CTO | | | |
| |-------------------------------------------------------------------|
| |System board assembly with 1.4 GHz CPU, AMT, TPM |
| |-------------------------------------------------------------------|
| | * 2774-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 17x,|42W8143|R |N |
| | 18x, 19x,1Ax, 1Bx, 1Ex, 1Fx, 1Gx, 1Hx, 1Jx, | | | |
| | 1Kx, 1Lx, 1Mx,1Nx, 1Sx, 1Tx, 1Ux, 1Vx, 1Wx, | | | |
| | 1Yx, 1Zx, 1Px, 21x,22x, 23x, 24x, 25x, 26x, | | | |
| | L1x, L2x, L3x, L4x, L5x, L6x,LEx, L7x, L8x, | | | |
| | L9x, LFx, LAx, LBx, LCx, LDx, P1x,P2x, P3x, | | | |
| | P4x, P5x, P6x, P7x, P8x, P9x, PAx, PBx, | | | |
| | PCx,PDx, PEx, PFx, PGx | | | |
| | * 2776-CTO | | | |
| | * 2777-CTO | | | |
| | * 2778-CTO | | | |
| | * 2779-CTO | | | |
| | * 4057-CTO, 17x, 18x, 19x, LDx | | | |
| | * 4182-CTO, L1x, L2x, L3x, L4x, L5x, L6x, L7x,| | | |
| | L8x,L9x, LAx, LBx, P1x, P2x, P3x, P4x, P5x, | | | |
| | P6x, P7x | | | |
| |-------------------------------------------------------------------|
| |System board assembly with 1.4 GHz CPU, AMT, non-TPM |
| |-------------------------------------------------------------------|
| | * 2774-CTO |42W8144|R |N |
| | * 2776-CTO | | | |
| | * 2777-CTO | | | |
| | * 2778-CTO | | | |
| | * 2779-CTO | | | |
| | * 4057-CTO | | | |
| | * 4182-CTO | | | |
|----+-------------------------------------------------------------------|
|6 |Intel WiFi Link 5100 |
| |-------------------------------------------------------------------|
| | * 2774-CTO, 17x, 18x, 1Tx, 21x, 22x, 23x, L2x,|43Y6461|R |** |
| | LCx,LDx, PBx, PCx | | | |
| | * 2776-CTO, L7x, L8x, L9x, LAx, LBx, P4x, P5x,| | | |
| | P5x,P6x, P7x, P8x, P9x, TDx, TEx, TGx, THx, | | | |
| | TJx, TKx,TLx, TMx, TRx, TSx | | | |
| | * 2777-CTO, L1x, L2x, T1x, T3x | | | |
| | * 2778-CTO, X1x | | | |
| | * 2779-CTO, X1x | | | |
| | * 4057-CTO, 17x, 18x, 19x, LDx | | | |
| | * 4182-CTO | | | |
| |-------------------------------------------------------------------|
| |Intel WiFi Link 5100 (MIMO disabled) |
| |-------------------------------------------------------------------|
| | * 2774-CTO |42T0997|R |** |
| | * 2776-CTO | | | |
| | * 2777-CTO | | | |
| | * 2778-CTO | | | |
| | * 2779-CTO | | | |
| | * 4057-CTO | | | |
| | * 4182-CTO | | | |
| |-------------------------------------------------------------------|
| |Intel WiFi Link 5300 |
| |-------------------------------------------------------------------|
| | * 2774-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 19x,|43Y6459|R |** |
| | 1Ax, 1Bx,1Ex, 1Fx, 1Gx, 1Hx, 1Jx, 1Kx, 1Lx, | | | |
| | 1Mx, 1Nx, 1Px,1Sx, 1Ux, 1Vx, 1Wx, 1Yx, 1Zx, | | | |
| | 24x, 25x, 26x, L1x, L3x,L4x, L5x, L6x, L7x, | | | |
| | L8x, L9x, LAx, LBx, LEx, LFx,P1x, P2x, P3x, | | | |
| | P4x, P5x, P6x, P7x, P8x, P9x, PAx, PDx,PEx, | | | |
| | PFx, PGx | | | |
| | * 2776-CTO, L1x, L2x, L3x, L4x, L5x, L6x, LCx,| | | |
| | LDx,LEx, LFx, P1x, P2x, P3x, T1x, T2x, T3x, | | | |
| | T4x, T5x, T6x,T7x, T8x, T9x, TAx, TCx, TFx | | | |
| | * 2777-CTO, P1x, P2x, P3x, P4x, P5x, P6x, P7x,| | | |
| | T4x,T5x, T6x, T7x, T8x, T9x, TAx, TBx, TCx, | | | |
| | TDx, TEx,THx, TJx, TKx, TLx, TMx, TNx, TPx, | | | |
| | TRx | | | |
| | * 2778-CTO | | | |
| | * 2779-CTO | | | |
| | * 4057-CTO | | | |
| | * 4182-CTO, L1x, L2x, L3x, L4x, L5x, L6x, L7x,| | | |
| | L8x,L9x, LAx, LBx, P1x, P2x, P3x, P4x, P5x, | | | |
| | P6x, P7x | | | |
|----+-------------------------------------------------------------------|
|7 |VGA cable |
| |-------------------------------------------------------------------|
| |All models |43Y9812|R |N |
|----+-------------------------------------------------------------------|
|8 |DC-in cable |
| |-------------------------------------------------------------------|
| |All models |44C4045|R |N |
|----+-------------------------------------------------------------------|
|9 |DVD-RW/CD-RW combo drive |
|----+-------------------------------------------------------------------|
| | * 2774-CTO, 12x, 14x, 15x, 16x, 17x, 18x, 1Ax,|42T2509|R |** |
| | 1Bx, 1Fx,1Hx, 1Jx, 1Lx, 1Mx, 1Nx, 1Sx, 1Tx, | | | |
| | 1Vx, 1Yx, 1Zx,22x, 23x, 25x, L3x, L4x, L8x, | | | |
| | LAx, LBx, LDx | | | |
| | * 2776-CTO, L1x, L2x, L3x, L4x, L5x, L6x, L7x,| | | |
| | L8x,L9x, LAx, LBx, LCx, LDx, LEx, LFx, P1x, | | | |
| | P2x, P3x,P4x, P5x, P6x, P7x, P8x, P9x, T2x, | | | |
| | T4x, T5x, T7x, T8x,T9x, TCx, TDx, TEx, TFx, | | | |
| | TGx, THx, TJx, TKx, TLx,TMx, TRx, TSx | | | |
| | * 2777-CTO, L2x, P2x, P3x, P5x, P6x, P7x, T1x,| | | |
| | T3x,T5x, TDx, TEx, T7x, T8x, TAx, TBx, TJx, | | | |
| | TPx, TRx,TLx, TMx | | | |
| | * 2778-CTO, X1x | | | |
| | * 2779-CTO, X1x | | | |
| | * 4057-CTO, 17x, 18x, 19x, LDx | | | |
| | * 4182-CTO, L2x, L3x, L4x, L7x, L8x, L9x, LBx,| | | |
| | P2x,P3x, P5x, P6x, P7x | | | |
|----+-------------------------------------------------------------------|
| |Second battery, Li-Polymer (3 cell) |
| |-------------------------------------------------------------------|
| | * 2774-CTO, 19x, 1Kx, 1Px, 1Ux, 21x, 24x, L5x,|42T4520|R |* |
| | LCx,PBx | | | |
| | * 2776-CTO, T6x, TAx | | | |
| | * 2777-CTO, T9x, TCx, TNx | | | |
| | * 2778-CTO | | | |
| | * 2779-CTO | | | |
| | * 4057-CTO | | | |
| | * 4182-CTO, L5x, LAx | | | |
|----+-------------------------------------------------------------------|
| |Travel cover |
| |-------------------------------------------------------------------|
| | * 2774-CTO, 11x, 13x, 1Ex, 1Gx, 1Wx, L1x, L2x,|42X5137|R |* |
| | L6x,L7x, L9x, P1x, P4x, PDx, PFx | | | |
| | * 2776-CTO, T1x, T3x | | | |
| | * 2777-CTO, L1x, T4x, T6x, THx, TKx, P1x, P4x | | | |
| | * 2778-CTO | | | |
| | * 2779-CTO | | | |
| | * 4057-CTO | | | |
| | * 4182-CTO, L1x, L6x, P1x, P4x | | | |
|----+-------------------------------------------------------------------|
|10 |Battery pack, Li-Polymer (3 cell) |
| |-------------------------------------------------------------------|
| | * 2774-CTO, 11x, 12x, 13x, 14x, 15x, 17x, 1Ax,|42T4518|R |* |
| | 1Ex, 1Fx,1Gx, 1Hx, 1Lx, 1Mx, 1Sx, 1Vx, 1Wx, | | | |
| | 1Yx, 1Zx, 25x,L2x, L3x, L8x, LAx, LDx, P1x, | | | |
| | P2x P3x, P8x, P9x, PAx,PCx, PEx | | | |
| | * 2776-CTO, L4x, L5x, L7x, L8x, L9x, P1x, P2x,| | | |
| | P3x,P4x, T1x, T2x, T8x, T3x, T4x, T7x, TCx, | | | |
| | TGx, THx,TKx | | | |
| | * 2777-CTO, L1x, L2x, P1x, P2x, P3x, T1x, T3x,| | | |
| | T4x,T5x, T6x, T7x, TAx, TBx, TDx, THx, TJx, | | | |
| | TKx, TLx,TPx | | | |
| | * 2778-CTO | | | |
| | * 2779-CTO | | | |
| | * 4057-CTO, 17x, 19x, LDx | | | |
| | * 4182-CTO, L1x, L2x, L3x, L6x, L7x, L9x, LBx,| | | |
| | P1x,P2x, P3x | | | |
| |-------------------------------------------------------------------|
| |Battery pack, Li-ion (6 cell) |
| |-------------------------------------------------------------------|
| | * 2774-CTO, 16x, 18x, 19x, 1Bx, 1Jx, 1Kx, 1Nx,|42T4522|R |* |
| | 1Px, 1Tx,1Ux, 21x, 22x, 23x, 24x, 26x, L1x, | | | |
| | L4x, L5x, L6x, L7x,L9x, LBx, LCx, LEx, LFx, | | | |
| | P4x, P5x, P6x, P7x, PBx,PDx, PFx, PGx | | | |
| | * 2776-CTO, P5x, P6x, P7x, P8x, P9x, L1x, L2x,| | | |
| | L3x,L6x, LAx, LBx, LCx, LDx, LEx, LFx, T5x, | | | |
| | T6x, T9x,TAx, TDx, TEx, TFx, TJx, TLx, TMx, | | | |
| | TRx, TSx | | | |
| | * 2777-CTO, T8x, T9x, TCx, TEx, TMx, TNx, TRx,| | | |
| | P4x,P5x, P6x, P7x | | | |
| | * 2778-CTO, X1x | | | |
| | * 2779-CTO, X1x | | | |
| | * 4057-CTO, 18x | | | |
| | * 4182-CTO, L4x, L5x, L8x, LAx, P4x, P5x, P6x,| | | |
| | P7x | | | |
|----+-------------------------------------------------------------------|
|11 |Base cover assembly |
| |-------------------------------------------------------------------|
| |2774 |45N3057|R |N |
| |------------------------------------------------+-------+-----+----|
| |2776 |45N3058|R |N |
| |------------------------------------------------+-------+-----+----|
| |2777 |45N3059|R |N |
| |------------------------------------------------+-------+-----+----|
| |2778 |45N3060|R |N |
| |------------------------------------------------+-------+-----+----|
| |2779 |45N3061|R |N |
| |------------------------------------------------+-------+-----+----|
| |4057 |45N3062|R |N |
| |------------------------------------------------+-------+-----+----|
| |4182 |45N3231|R |N |
|----+-------------------------------------------------------------------|
|12 |SATA solid state drive assembly, 64 GB |
| |-------------------------------------------------------------------|
| | * 2774-CTO, 11x, 12x, 17x, 18x, 19x, 1Ax, 1Bx,|42T1898|R |** |
| | 1Ex, 1Fx,1Mx, 1Nx, 1Px, 1Tx, 1Yx, L2x, L7x, | | | |
| | L8x, LCx, LDx,LEx, P1x, P2x, P3x, P8x, P9x, | | | |
| | PBx, PCx, PDx, PEx | | | |
| | * 2776-CTO, L1x, L5x, L7x, L8x, L9x, LAx, LBx,| | | |
| | LCx,P1x, P2x, P4x, P5x, P7x, P9x, T1x, T2x, | | | |
| | T8x, T9x, TAx,TDx, TEx, TGx | | | |
| | * 2777-CTO, L1x, L2x, T1x, T4x, T5x, TCx, TDx,| | | |
| | TEx,THx, TJx, TPx, TRx, P1x, P2x, P3x | | | |
| | * 2778-CTO, X1x | | | |
| | * 2779-CTO, X1x | | | |
| | * 4057-CTO, 17x, 18x, 19x, LDx | | | |
| | * 4182-CTO, L1x, L2x, L3x, L4x, L5x, P1x, P2x,| | | |
| | P3x | | | |
| |-------------------------------------------------------------------|
| |SATA solid state drive assembly, 128 GB |
| |-------------------------------------------------------------------|
| | * 2774-CTO, 13x, 14x, 15x, 16x, 1Gx, 1Hx, 1Jx,|41W0519|R |** |
| | 1Kx, 1Lx,1Sx, 1Ux, 1Vx, 1Wx, 1Zx, 24x, 25x, | | | |
| | L4x, L5x, LBx,LFx, P4x, P5x, P6x, P7x, PAx, | | | |
| | PGx | | | |
| | * 2776-CTO, L3x, L6x, LEx, LFx, T3x, T4x, T5x,| | | |
| | T6x,T7x, TCx, TFx, TJx, TMx, TSx, P3x, P6x, | | | |
| | P8x | | | |
| | * 2777-CTO, T6x, T7x, T8x, T9x, TAx, TBx, TKx,| | | |
| | TLx,TMx, TNx, P4x, P5x, P6x, P7x | | | |
| | * 2778-CTO | | | |
| | * 2779-CTO | | | |
| | * 4057-CTO | | | |
| | * 4182-CTO, L6x, L7x, L8x, L9x, LAx, LBx, P4x,| | | |
| | P5x,P6x, P7x | | | |
| |-------------------------------------------------------------------|
| |MicroSATA hard disk drive, 120 GB, 5,400 rpm |
| |-------------------------------------------------------------------|
| | * 2774-CTO |42T1323|R |** |
| | * 2776-CTO | | | |
| | * 2777-CTO | | | |
| | * 2778-CTO | | | |
| | * 2779-CTO | | | |
| | * 4057-CTO | | | |
| | * 4182-CTO | | | |
|----+-------------------------------------------------------------------|
|13 |Speaker assembly |
| |-------------------------------------------------------------------|
| |All models |42X4670|R |N |
|----+-------------------------------------------------------------------|
|14 |Fan |
| |-------------------------------------------------------------------|
| |All models |44C0747|R |N |
|----+-------------------------------------------------------------------|
|15 |Audio sub card |
| |-------------------------------------------------------------------|
| |All models |42W7992|R |N |
|----+-------------------------------------------------------------------|
|16 |Audio FPC |
| |-------------------------------------------------------------------|
| |All models |44C4047|R |N |
|----+-------------------------------------------------------------------|
|17 |Bluetooth daughter card (BDC-2.1) |
| |-------------------------------------------------------------------|
| |All models |43Y6481|R |N |
|----+-------------------------------------------------------------------|
|18 |512-MB DDR3-1067 SDRAM SO-DIMM (PC3-8500) card |
| |-------------------------------------------------------------------|
| | * 2774-CTO, L2x |43R1775|R |** |
| | * 2776-CTO | | | |
| | * 2777-CTO, L1x | | | |
| | * 2778-CTO | | | |
| | * 2779-CTO | | | |
| | * 4057-CTO | | | |
| | * 4182-CTO | | | |
| |-------------------------------------------------------------------|
| |1-GB DDR3-1067 SDRAM SO-DIMM (PC3-8500) card |
| |-------------------------------------------------------------------|
| | * 2774-CTO, 11x, 12x, 17x, 1Ex, 1Fx, 1Tx, 1Ux,|43R1989|R |** |
| | 1Vx, L3x,L4x, L5x, LDx, P1x, P2x, P3x, P4x, | | | |
| | P5x, P6x, P7x, P8x,PCx | | | |
| | * 2776-CTO, L4x, L5x, L6x, L7x, L8x, , P1x, | | | |
| | P9x, T1x,T2x, TDx, TEx, TFx, TGx, THx | | | |
| | * 2777-CTO, L2x, P1x, P2x, P3x, P4x, P5x, P6x,| | | |
| | P7x,T1x, T3x, T4x, T5x, THx, TJx | | | |
| | * 2778-CTO | | | |
| | * 2779-CTO, X1x | | | |
| | * 4057-CTO, 17x, 19x, LDx | | | |
| | * 4182-CTO, L1x, L2x, P1x, P2x, P3x, P4x, P5x,| | | |
| | P6x, P7x | | | |
| |-------------------------------------------------------------------|
| |2-GB DDR3-1067 SDRAM SO-DIMM (PC3-8500) card |
| |-------------------------------------------------------------------|
| | * 2774-CTO, 13x, 14x, 15x, 16x, 18x, 19x, 1Ax,|43R1969|R |** |
| | 1Bx, 1Gx,1Hx, 1Jx, 1Kx, 1Lx, 1Mx, 1Nx, 1Px, | | | |
| | 1Sx, 1Wx, 1Yx,1Zx, 21x, 24x, 25x, 26x, L1x, | | | |
| | L4x, L6x, LEx, L7x, L8x,L9x, LFx, LAx, LBx, | | | |
| | LCx, P9x, PAx, PBx, PDx, PEx,PFx, PGx | | | |
| | * 2776-CTO, L1x, L2x, L3x, L9x, LAx, LBx, LCx,| | | |
| | LDx,LEx, LFx, P2x, P3x, P4x, P5x, P6x, P7x, | | | |
| | P8x, T3x, T4x,T5x, T6x, T7x, T8x, T9x, TAx, | | | |
| | TCx, TJx, TKx, TLx,TMx, TRx, TSx | | | |
| | * 2777-CTO, T6x, T7x, T8x, T9x, TAx TBx, TCx, | | | |
| | TDx,TEx, TKx, TLx, TMx, TNx, TPx, TRx | | | |
| | * 2778-CTO, X1x | | | |
| | * 2779-CTO | | | |
| | * 4057-CTO, 18x | | | |
| | * 4182-CTO, L3x, L4x, L5x, L6x, L7x, L8x, L9x,| | | |
| | LAx,LBx | | | |
|----+-------------------------------------------------------------------|
|19 |Palm rest assembly with fingerprint reader |
| |-------------------------------------------------------------------|
| |All models |44C4872|R |** |
|----+-------------------------------------------------------------------|
|20 |Keyboard |
| |-------------------------------------------------------------------|
| |See Keyboard service parts. |
|----+-------------------------------------------------------------------|
|21 |TrackPoint stick caps |
| |-------------------------------------------------------------------|
| |All models |91P9642|R |* |
|----+-------------------------------------------------------------------|
|-- |Thermal grease |
| |-------------------------------------------------------------------|
| |All models |91P8835|R |N |
| |-------------------------------------------------------------------|
| |AC adapter |
| |-------------------------------------------------------------------|
| |See Common service parts. |
+------------------------------------------------------------------------+
13.3 inch WXGA+ (1440x900) LCD service parts.
+------------------------------------------------------------------------+
|Item|Description |Service|RoHS |CRU ID|
| | |part |ID | |
| | |number | | |
| | |(FRU) | | |
|----+-------------------------------------------------------------------|
|1 |LCD bezel assembly |
| |-------------------------------------------------------------------|
| |All models |44C0862|R |N |
|----+-------------------------------------------------------------------|
|2 |LCD module, 13.3-inch WXGA+ |
| |-------------------------------------------------------------------|
| |All models |42T0476|R |N |
|----+-------------------------------------------------------------------|
|3 |Antenna |
| |-------------------------------------------------------------------|
| |All models |44C4042|R |N |
|----+-------------------------------------------------------------------|
|4 |Hinge R |
| |-------------------------------------------------------------------|
| |All models |42X5134|R |N |
|----+-------------------------------------------------------------------|
|5 |LCD cover assembly |
| |-------------------------------------------------------------------|
| |All models |45N3055|R |N |
|----+-------------------------------------------------------------------|
|6 |LCD cable |
| |-------------------------------------------------------------------|
| |All models |44C5398|R |N |
|----+-------------------------------------------------------------------|
|7 |Integrated camera |
| |-------------------------------------------------------------------|
| | * 2774-CTO, 11x, 12x, 13x, 14x, 15x, 16x, |42T3564|R |N |
| | 17x, 18x, 19x,1Ax, 1Bx, 1Ex, 1Fx, 1Gx, | | | |
| | 1Hx, 1Jx, 1Kx, 1Lx, 1Mx,1Nx, 1Px, 1Sx, | | | |
| | 1Tx, 1Ux, 1Vx, 1Wx, 1Yx, 1Zx, 21x, | | | |
| | 22x,23x, 24x, 25x, 26x, L1x, L3x, L4x, | | | |
| | L5x, L6x, LEx, L7x,L8x, L9x, LFx, LAx, | | | |
| | LBx, LCx, LDx, P1x, P2x, P3x,P4x, P5x, | | | |
| | P6x, P7x, P8x, P9x, PAx, PBx, PCx, PEx | | | |
| | * 2776-CTO, L1x, L2x, L3x, L4x, L5x, L6x, | | | |
| | L7x, L8x, L9x,LAx, LBx, LCx, LDx, LEx, | | | |
| | LFx, P1x, P2x, P3x, P4x,P5x, P6x, P7x, | | | |
| | P8x, P9x, T1x, T2x, T3x, T4x, T5x, | | | |
| | T6x,T7x, T8x, T9x, TAx, TCx, TDx, TEx, | | | |
| | TFx, THx, TJx,TKx, TLx, TMx, TRx, TSx | | | |
| | * 2777-CTO, L2x, P1x, P2x, P3x, P4x, P5x, | | | |
| | P6x, P7x, T1x,T3x, T4x, T5x, T6x, T7x, | | | |
| | T8x, T9x, TAx, TBx, TCx,TDx, TEx, THx, | | | |
| | TJx, TKx, TLx, TMx, TNx, TPx, TRx | | | |
| | * 2778-CTO | | | |
| | * 2779-CTO | | | |
| | * 4057-CTO, 17x, 18x, 19x, LDx | | | |
| | * 4182-CTO, L1x, L2x, L3x, L4x, L5x, L6x, | | | |
| | L7x, L8x, L9x,LAx, LBx, P1x, P2x, P3x, | | | |
| | P4x, P5x, P6x, P7x | | | |
|----+-------------------------------------------------------------------|
|8 |Hinge L |
| |-------------------------------------------------------------------|
| |All models |42X5135|R |N |
|----+-------------------------------------------------------------------|
|9 |LED cable |
| |-------------------------------------------------------------------|
| |All models |43Y9802|R |N |
|----+-------------------------------------------------------------------|
|10 |LED sub card |
| |-------------------------------------------------------------------|
| |All models |43Y9172|R |N |
+------------------------------------------------------------------------+
Keyboard service parts
+------------------------------------------------------------------------+
|Language |Service part |RoHS |CRU |
| |number |ID |ID |
|------------------------------------------+----------------+------+-----|
|Arabic |42T3615 |R |** |
|------------------------------------------+----------------| | |
|Belgian |42T3612 | | |
|------------------------------------------+----------------| | |
|Brazilian Portuguese |42T3631 | | |
|------------------------------------------+----------------| | |
|Canadian French (058) |42T3602 | | |
|------------------------------------------+----------------| | |
|Canadian French (Acnor) |42T3601 | | |
|------------------------------------------+----------------| | |
|Czech |42T3620 | | |
|------------------------------------------+----------------| | |
|Danish |42T3609 | | |
|------------------------------------------+----------------| | |
|Dutch |42T3606 | | |
|------------------------------------------+----------------| | |
|Finnish, Swedish |42T3607 | | |
|------------------------------------------+----------------| | |
|French |42T3605 | | |
|------------------------------------------+----------------| | |
|German |42T3603 | | |
|------------------------------------------+----------------| | |
|Greek (U.S. English and Greek layout) |42T3622 | | |
|------------------------------------------+----------------| | |
|Hebrew |42T3617 | | |
|------------------------------------------+----------------| | |
|Hungarian |42T3621 | | |
|------------------------------------------+----------------| | |
|Icelandic |42T3632 | | |
|------------------------------------------+----------------| | |
|Italian |42T3610 | | |
|------------------------------------------+----------------| | |
|Japanese |42T3625 | | |
|------------------------------------------+----------------| | |
|Korean |42T3627 | | |
|------------------------------------------+----------------| | |
|Latin American Spanish |42T3628 | | |
|------------------------------------------+----------------| | |
|Norwegian |42T3608 | | |
|------------------------------------------+----------------| | |
|Polish |42T3618 | | |
|------------------------------------------+----------------| | |
|Portuguese |42T3614 | | |
|------------------------------------------+----------------| | |
|Russian |42T3616 | | |
|------------------------------------------+----------------| | |
|Slovak |42T3624 | | |
|------------------------------------------+----------------| | |
|Slovenian |42T3623 | | |
|------------------------------------------+----------------| | |
|Spanish |42T3611 | | |
|------------------------------------------+----------------| | |
|Swiss |42T3613 | | |
|------------------------------------------+----------------| | |
|Thai |42T3629 | | |
|------------------------------------------+----------------| | |
|Traditional Chinese |42T3626 | | |
|------------------------------------------+----------------| | |
|Turkish |42T3619 | | |
|------------------------------------------+----------------| | |
|U.K. English |42T3604 | | |
|------------------------------------------+----------------| | |
|U.S. English |42T3600 | | |
|------------------------------------------+----------------| | |
|U.S. English (International, with a Euro |42T3630 | | |
|symbol) | | | |
+------------------------------------------------------------------------+
back
